Belt Monkey has been designed to eliminate the need for countless measurements and adjustments by achieving the correct belt tension first time, every time.

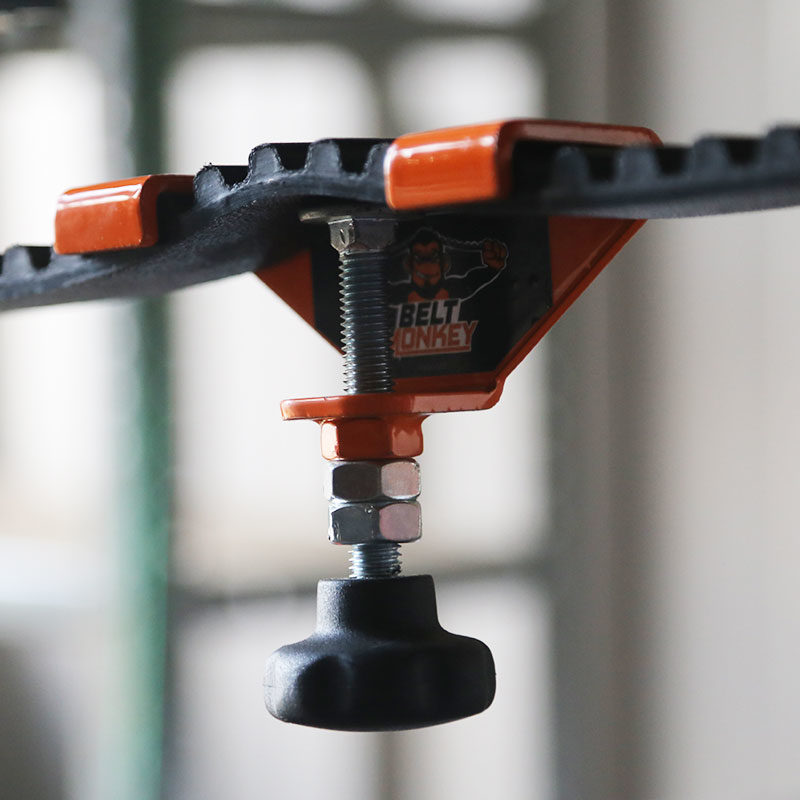

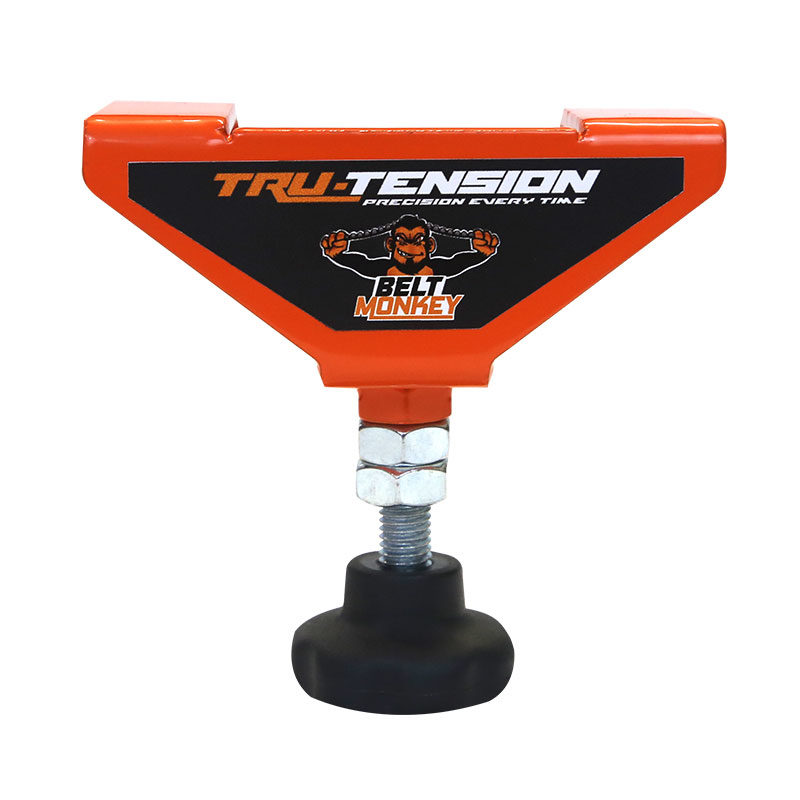

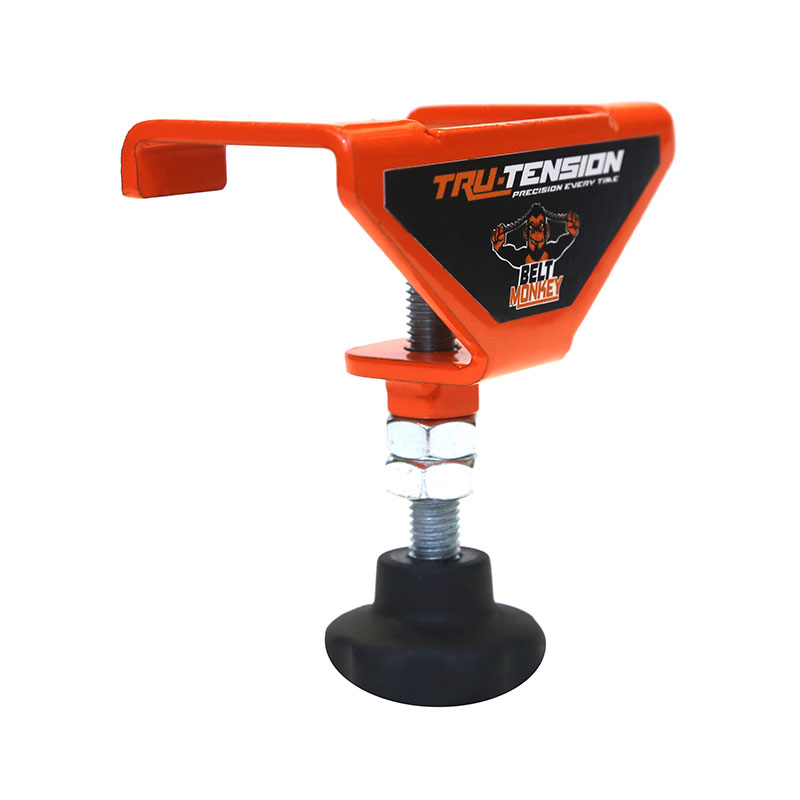

Belt Monkey – Motorcycle Belt Tensioning Tool
£29.99
Out of stock
Out of stock
Description
Description
Belt driven motorcycles require the correct drive belt tension to ensure moving components are not over stressed, while providing a smooth and comfortable ride. Achieving the correct tension setting can often take numerous measurements and adjustments while taking up a lot of time.
Belt Monkey has been designed to eliminate the need for countless measurements and adjustments by achieving the correct belt tension first time, every time. Our tool enables riders to tension their belt quickly and with ease. The simplicity of our product means that you are comfortable maintaining your bike yourself, regardless of experience.
Improve Performance
Prolong Sprocket Life
Increase Belt Life
Optimise Power Delivery
Smoother RideHow to use your Belt Monkey
| Step 1: | Using your motorcycle’s manufacturer manual, specify how much movement is required at 10lb of pressure. |
| Step 2: | Align the bottom of the domed edge with the required setting line and adjust the locking nuts so that they are touching the underside of the orange base. Lock the nuts together using two spanners to set your Belt Monkey. |

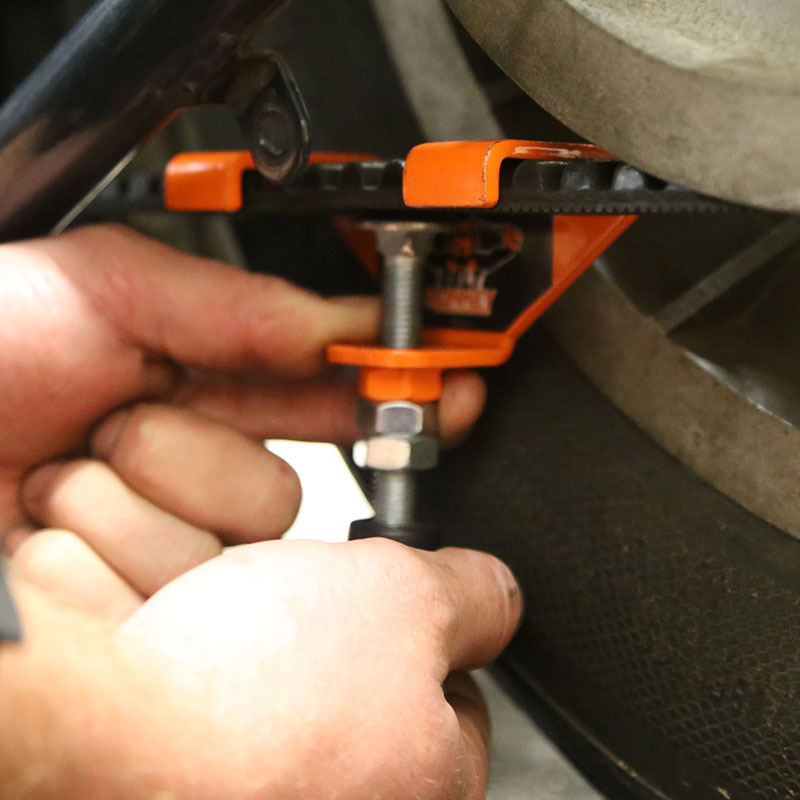

| Step 3: | Undo rear wheel nut and slightly slacken belt. Hook onto belt and tighten until the locking nuts touch the orange base. Ensure your bike is in neutral. |
| Step 4: | Adjust swingarm adjusters evenly until the belt goes tight. Ensure the wheel is aligned and tighten rear wheel nut. |
| Step 5: | Remove from belt. Required tension will now be set. |
[slide-anything id=”4991″]
Additional information
| Weight | 1 kg |
|---|
